GALLERY

Welded Assembly
6.0" x 4.0" x 2.0"
321 Stainless Steel

Machined Plate
6.50" x 6.0" x .50"
6061-T6 Aluminum

Fitting
5.5" x 2.0" Diameter
6AL-4V Titanium

Small Clamp Assembly - Sheet Metal
1.25" Diameter
7075-0 Aluminum

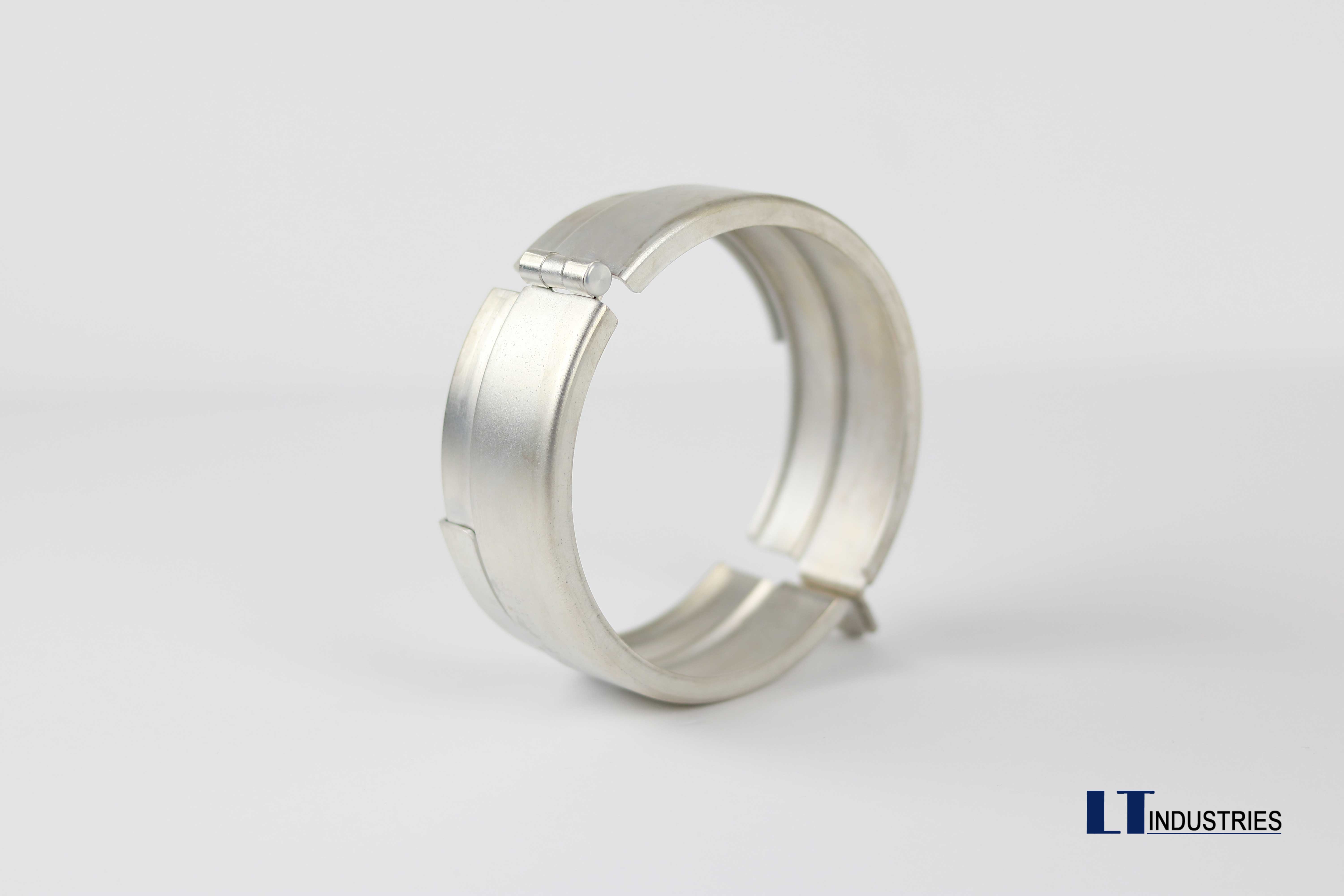

Large Clamp Assembly - Sheet Metal
3.50" Diameter
7075-0 Aluminum

Strap Assembly
5.0" Diameter
6061-0 Aluminum

Retainer, Insert
5.50" x 2.25"
6061-0 Aluminum

Access Door
10" x 9"
7075-T6 Aluminum

Bracket Assembly
6.50" x 3.0"
6061-0 Aluminum

Pump Assembly
6.0" Diameter x 3.0"
2024-T3 Aluminum

Safety Panel
7" x 6" x 6"
304 Stainless Steel

Cowl Assembly
7" x 10" x 11"
7075-T73 Aluminum

Fairing
12.0" x 4.0" x 3.50"
6061-T6 Aluminum

Window Frame, Retainer
28" x 26"
2024-T3 Aluminum

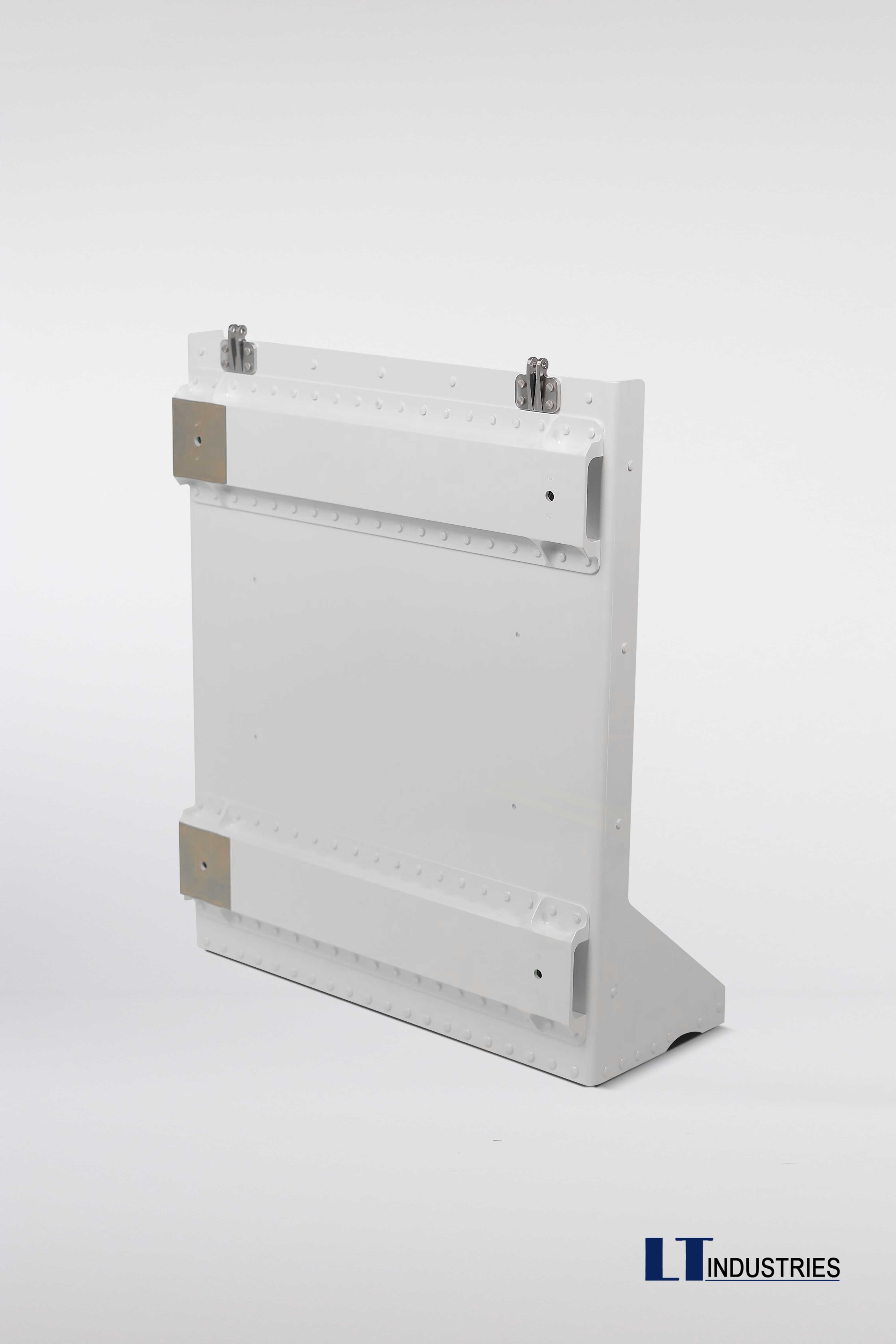

Tray Assembly
19.50" x 16.0" x 6.00"
7050-T62 Aluminum
